High Speed CNC Spring Manufacturing Machine / Cam Coil Spring Making Machine

Brand Name : HYD

Model Number : HYD-40T-3A

Certification : CE / IS09001

Place of Origin : Dongguan,China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union, MoneyGram, T/T

Supply Ability : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 15 Days

Packaging Details : Standard Seaworthy Plywood Case

Axis : Three Axes

Optional Tools : Spinner/Servo Scissors/Machine hand

Sample : Provided

Nearest Port : Shenzhen,China

Machine Weight : 1800KG

Decoiler : 200KG

System : English/Chinese

Machine painting : Can do as per requirement

Contact Now

High Speed CNC Cam Spring Making Machine of Wire Size 0.8 - 4.2mm

1.This machine adopts the high accurate servo motor and CNC control system, it can produce the accurate size and complex spring if adds the Spinner axis,and this machine can also add servo scissors,then this machine can also cut 4.5mm wire.

2. This machine can be 4 axes, the Cam axis, Feeding axis, Quill Rotary axis, and the Spinner axis (optional). HYD-40T-3A is with three axes,we have optional tools like spinner,machine hand,servo scissors as additional axis.This machine is without wire rotation function,HYD-40T-12A is with wire rotation.

3. This machine is suitable for making various Compression spring, Extension spring, Single (double) torsion spring, Tower shaped compression spring, Flat wire spring, and any kind wire forming.

Diameter	0.8~4.2mm
Max OD	60mm
Wire Feeding speed	0~110m/min
Transmission speed cam	0~60RPM
Wire feed servo motor	5.5KW
Can servo motor	5.5KW
Rotary servo motors	1.0KW
Machine size	160013001900mm
Machine Weight	1800kg

Samples:

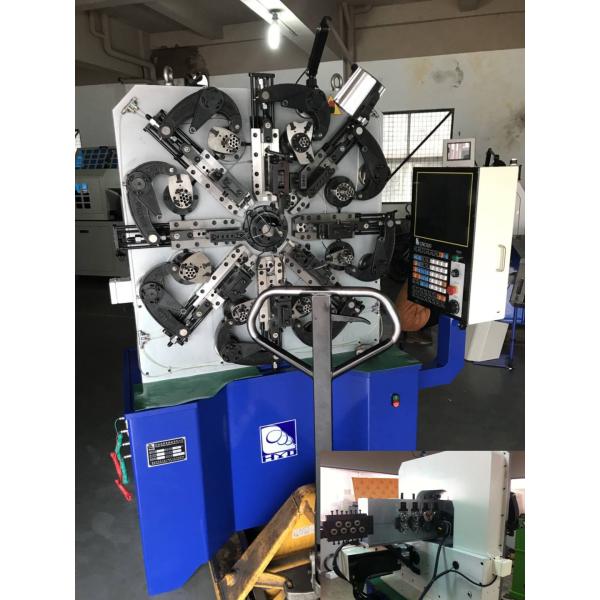

High Speed CNC Spring Manufacturing Machine / Cam Coil Spring Making Machine

Machine Purchasing Process

• Customer provide HYD spring drawing

• HYD provide technical information for machine and spring making information

• Customer confirm machine and order,then arrange 30% deposit as PO confirmation

• HYD make spring set-up in machine after manufacturing period

• HYD shipped machine after customer’s spring confirmation and receive balance payment.

• Machine following for transposition and all after-sales service
